Concealed Linkage
The top linkage is hidden for a cleaner, more aesthetically pleasing roof appearance.
AL-120-B-KD Aluminum Pergola
A refined aluminum pergola designed for residential garden, backyard and patio shade projects. The AL-120-B-KD features 120 x 120mm posts, 180 x 36.2mm large louver blades, hidden top linkage, hidden motor design, manual or motorized roof options and 3 x 3m / 3 x 4m standard sizes.
01Sourcing TermsDS-AL-120-B-KD · Alux Aluminum Series
Refined Aluminum Pergola.
Hidden Mechanism Design.
The AL-120-B-KD is an aluminum pergola for buyers who care about a cleaner visual finish. Hidden top linkage, hidden motor design and larger 180mm louver blades make it a stronger option for residential projects that need upgraded appearance without losing practical installation logic.
Start SourcingAHiddenLinkage Design
The concealed top linkage keeps the roof area visually cleaner for a more refined aluminum pergola look.
BMotorHidden Drive Option
The hidden motor design improves the appearance of motorized packages for premium residential buyers.
C180mmLarge Blade
180 x 36.2mm louvers provide stronger roof presence and better snow-load positioning.
D3x4mProject Size
3 x 3m and 3 x 4m sizes fit garden, backyard, patio and terrace shade applications.
02Technical DataDS-AL-120-B-KD · Alux Aluminum Series
AL-120-B-KD Product Data
A refined aluminum pergola with 120 x 120mm posts, 180 x 36.2mm large louver blades, hidden linkage and hidden motor design, plus manual or motorized roof options for 3 x 3m and 3 x 4m projects.
CategoryAluminum Pergola
Roof TypeManual or Motorized
Standard Sizes3 x 3m / 3 x 4m
DesignHidden Mechanism
ModelAL-120-B-KD
Post120 x 120mm
Louver Blade180 x 36.2mm
Side Beam Manual150 x 33.5mm
Side Beam Motorized165 x 56mm
Water Gutter57.8 x 29.5mm
Available Sizes3 x 3 x 2.5m / 3 x 4 x 2.5m
Louver RoofManual or motorized operation
Zip ScreenManual or motorized option
LED StripsWarm white / white / RGB option
03Selling PointsDS-AL-120-B-KD · Alux Aluminum Series
Why Buyers Choose the AL-120-B-KD
The AL-120-B-KD is for buyers who want aluminum performance with a more polished look. Its concealed mechanism design, hidden motor option and larger blades help dealers present a more refined pergola than basic aluminum models.
Hidden Motor Design
The motor is designed to stay visually discreet, improving the look of motorized models.
Large Louver Blade
180 x 36.2mm blades strengthen the roof presence and snow-load positioning.
Easier Installation
The blade groove design makes installation more convenient for project teams and dealers.
Residential Coverage
3 x 3m and 3 x 4m sizes cover common garden, backyard and patio shade projects.
04ConfigurationDS-AL-120-B-KD · Alux Aluminum Series
Build a Refined Aluminum Pergola Package
Use the AL-120-B-KD when the buyer needs a cleaner aluminum appearance, larger louver blades and flexible manual or motorized options for residential shade projects.
Manual Roof Package
Offer a clean aluminum pergola with large louvers while keeping the control package accessible.
Motorized Upgrade
Use the hidden motor design to support a more premium visual finish for electric operation.
Concealed Linkage
Hidden roof linkage makes the top structure look cleaner in residential and showroom presentations.
Blade Groove Installation
The blade groove design helps make installation easier and more repeatable on site.
Zip Screen Option
Manual or motorized screens add privacy, side shade and light-weather comfort.
LED Strip Option
Warm white, white or RGB lighting builds a stronger evening-use package.
05Design DetailDS-AL-120-B-KD · Alux Aluminum Series
Hidden Mechanism Design
A Cleaner Aluminum Pergola for Refined Outdoor Spaces
The AL-120-B-KD focuses on visual refinement. Hidden linkage and hidden motor design reduce visible mechanical clutter, while large 180 x 36.2mm louvers give the roof stronger presence for residential patios, gardens and outdoor living projects.
Hidden Motor Design06InstallationDS-AL-120-B-KD · Alux Aluminum Series
Two Layout Directions for Residential Projects
The AL-120-B-KD can be used as a wall-adjacent patio cover or freestanding garden pergola depending on site layout, shade area and buyer preference.
Wall-Adjacent Patio
Works beside homes, terraces and patio edges where the shade area connects to the building.

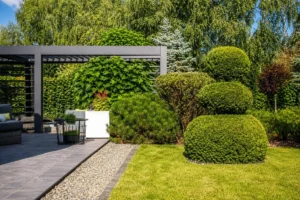

Freestanding Garden Pergola
Four-post placement supports gardens, backyards, deck spaces and independent outdoor living zones.
07Colors & Add-OnsDS-AL-120-B-KD · Alux Aluminum Series
Refined Aluminum Options
Turn AL-120-B-KD into a Complete Residential Offer
Quote the pergola as a refined aluminum shade model, then add lighting, screens and side elements when the project needs privacy, evening comfort or a higher-value residential package.
Light Neutral
Graphite Grey
Dark Charcoal
LED Louver
Warm white, white or RGB lighting turns the pergola into a practical evening-use space.
Zip Blind
Manual or motorized zip blinds add privacy, side shade and light-weather comfort.
Sliding Shutter
Sliding shutters create an architectural side screen while keeping access flexible.
Adjustable Louver Wall
Side louvers help manage privacy, side sun and airflow around residential outdoor spaces.
Fixed Slat Wall
A simple side-screen route for privacy, shade and a cleaner garden appearance.
Glass Sliding Door
Glass panels help position the pergola as a brighter outdoor room for premium patios.
Folding Glass Door
Folding glass doors open a wider span for outdoor room and hospitality-style residential projects.
08Model ComparisonDS-AL-120-B-KD · Alux Aluminum Series
Compare AL-120-B-KD with Related Models
Choose the AL-120-B-KD when the buyer needs a more refined aluminum pergola with hidden mechanism details and larger blades. Move down for entry aluminum or up for larger premium aluminum models.
| Model | Position | Roof | Sizes | Best For |
|---|---|---|---|---|
| AL-120-B-KD | Refined aluminum model | Manual or motorized | 3x3m, 3x4m | Buyers needing hidden linkage, hidden motor design and cleaner appearance |
| AL-100-A-KD | Entry-level aluminum model | Manual or motorized | 3x3m, 3x4m | Accessible aluminum pergola programs and residential shade projects |
| AL-120-A-KD | Mid-level aluminum model | Manual or motorized | 3x3m, 3x4m | Buyers needing stronger aluminum positioning and snow-load story |
| AL-120-C-KD | Premium aluminum direction | Manual or motorized | Project-based | Residential projects needing stronger design presence and custom layouts |
| ST-100-C-KD | Mainstream steel best seller | Manual | 3x3m, 3x4m, 3x6m | Steel pergola buyers needing cost-controlled mainstream shade supply |
| AL-135-A-KD | Ultra-luxury aluminum model | Manual or motorized | Project-based | Premium outdoor rooms and high-end residential projects |
09Factory & DeliveryDS-AL-120-B-KD · Alux Aluminum Series
From Refined Design to Export-Ready Delivery
The AL-120-B-KD is reviewed around hidden mechanism details, manual or motorized configuration, screen options, LED package and packing details before production and shipment.
Appearance Requirement
Confirm whether the buyer needs hidden linkage, hidden motor design or a specific roof operation package.
Specification Review
Check post, louver blade, side beam, gutter, roof operation, screen and LED requirements together.
Option Grouping
Manual or motorized roof, screens, LED lighting and color options are grouped around the target channel.
B2B Handover
Importers, distributors and private-label buyers get clear order communication through export delivery.
10ApplicationsDS-AL-120-B-KD · Alux Aluminum Series
Recommended Uses for AL-120-B-KD
The AL-120-B-KD fits residential shade markets where buyers need a refined aluminum pergola with hidden mechanism design, large louvers and manual or motorized roof control.
Aluminum PergolaRefined aluminum pergola for residential and project shade programsLouvered PergolaLarge-blade adjustable louver roof for shade, airflow and outdoor comfortMotorized PergolaHidden motor design for cleaner appearance and upgraded operationGarden PergolaExquisite aluminum shade structure for garden and residential outdoor spacesBackyard Pergola Patio PergolaRefined aluminum pergola for backyard and patio shade projectsPergola PatioClean aluminum louver structure for patio and terrace applications
11FAQDS-AL-120-B-KD · Alux Aluminum Series
AL-120-B-KD Sourcing Questions
Quick answers for buyers evaluating AL-120-B-KD as a refined aluminum pergola for residential shade projects.
What is the main position of the AL-120-B-KD?
It is positioned as a refined aluminum pergola with hidden top linkage, hidden motor design and large louver blades.
Is the louver roof manual or motorized?
The louver roof can be quoted as manual or motorized. Manual and motorized versions use different side beam profiles.
What sizes are available?
The standard sizes are 3 x 3 x 2.5m and 3 x 4 x 2.5m, suitable for garden, patio and residential applications.
What project information should I send for a quote?
Send target size, roof operation, quantity, screen option, LED requirement, destination country and any OEM packaging request.
Send Inquiry
Request a Quote for the AL-120-B-KD Aluminum Pergola
Tell us your target size, roof operation, screen option, LED requirement, order quantity and destination country. Alux will confirm the AL-120-B-KD specification, accessory package, packing route and export delivery details.
Get an AL-120-B-KD Quote
